BRD-mPCIe-SW


The BRD-mPCIe-SW full size mini PCI express adapter board adds cellular connectivity to any device with a mini-PCIe slot: Embedded PCs, laptops, industrial tablets or custom PC boards, without the cost and delay of obtaining FCC and carrier certifications. The adapter board accepts NimbeLink's NL-SW-LTE-S7588 certified Skywire™ cellular modem, which is the smallest in the industry.

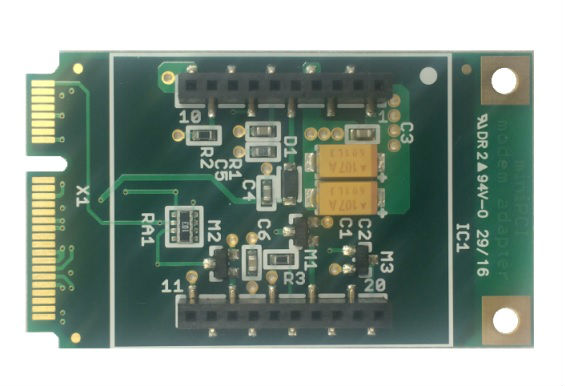

BRD-mPCIe-SW - Mini PCI express cellular modem adapter board
Part No. Description Price Stock
BRD-mPCIe-SW Mini PCI express cellular modem adapter board $24 763

BRD-mPCIe-SW is fully backed by a 3-year warranty, technical supportand application assistance from BiPOM Electronics, Inc.

Advantages


  • Fast incorporation of Verizon, AT&T, T-Mobile and other cellular access without certification cost
  • Eliminates the need for chip-down modem development
  • Allows compact device layout
  • Requires no software development on Linux and just addition of a USB driver on Windows

Specifications


  • Works with NL-SW-LTE-S7588 (-V and -T)
  • Supply voltage: 3.3V from miniPCIe
  • Active call current: 720mA - 1.5A
  • Normal current: 29mA
  • Power saving current: 1mA
  • Temperature range: -40°C to +85°C
  • Communication Method: USB
  • Dimensions: 51 mm x 30 mm x 12 mm

Target Applications


  • Kiosks
  • Digital signage
  • Security panels
  • Surveillance equipment
  • Control panels

Features


  • Compact size fits directly onto boards with full size mini-PCIe slots
  • Plug-and-play operation with Linux, Windows 7,8,10, and Embedded
  • Customer can use any antenna without requiring re-certification
  • Gold plated RoHS board
  • Warranty Period: 3 years
