GOK12832A-25-SM

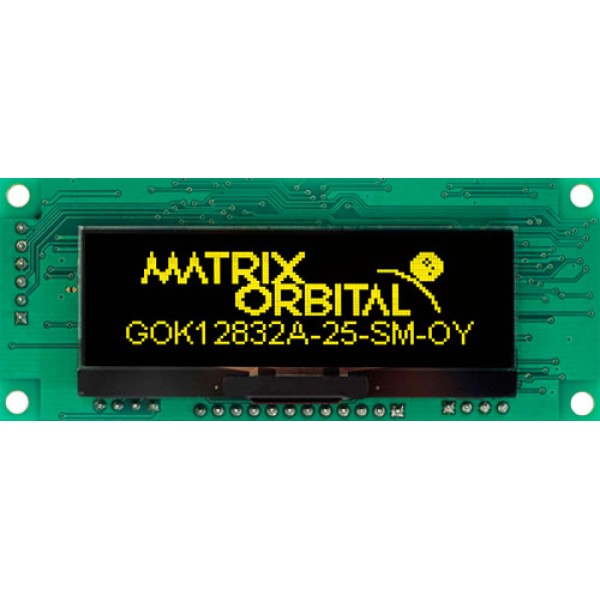

The GOK12832A-25SM is a 240x64 Intelligent Graphic OLED display designed to fit into 1U form factors. OLED technology improves readability by offering a high contrast display with wide viewing angles and requires significantly less power to operate than VFD or even LCD units. Engineered to quickly and easily add an elegant graphic HMI to any application. Multiple communication protocols such as Serial RS232, TTL, I2C, USB and RS422 communication models allow the GOK12832A-SM Graphic OLEDto be connected to a wide variety of host controllers.
Our Graphic OLED provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing. On board memory for Fonts and Bitmaps! This graphic OLED displays graphics and text in any font, style, justification and language, all with the convenience of a 25-key keypad matrix will allow fast development for any application.

 GOK12832A-25-SM - 122x32 1U Graphic OLED HMI, Yello text, Super Wide Voltage +5 to +15V
Part No. Description Price Stock
GOK12832A-25-SM-OY-LV 122x32 1U Graphic OLED HMI, Yello text, Low Voltage Power +3.3V $73 ∗
GOK12832A-25-SM-OY-LV-E 122x32 1U Graphic OLED HMI, Yello text, Low Voltage Power +3.3V, Extended Temperature -20 to +70 C. $83 ∗
GOK12832A-25-SM-OY-VS 122x32 1U Graphic OLED HMI, Yello text, Super Wide Voltage +5 to +15V $70 ∗
GOK12832A-25-SM-OY-VS-E 122x32 1U Graphic OLED HMI, Yello text, Super Wide Voltage +5 to +15V, Extended Temp. -20 to +70 C. $80 ∗
∗ Standard lead time is 1 week

Specification

Module
Family/Series Intelligent Display
Module Width (mm) 86.1
Module Height (mm) 35.1
Screen
Display Type Graphic OLED
Viewing Area Width (mm) 62
Viewing Area Height (mm) 24
Active Area Width (mm) 57.02
Active Area Height (mm) 15.1
Resolution Width (Pixels) 128
Resolution Height (Pixels) 32
Pixel Pitch Width (mm) 0.41
Pixel Pitch Height (mm) 0.43
Pixel Width (mm) 0.39
Pixel Height (mm) 0.41
Font Multilingual
Viewing Angle 160
HMI
Touchscreen None
Keypad None
Keys 25
Haptic Feedback None
Audio Feedback Piezo Buzzer
GPO's 2
Advanced GPO's None
DOW None
Integrated LED's None
Graphic Memory 256kB
Electrical
Interface RS232, TTL, I2C
Command Protocol Matrix Orbital
Controller LPC1752
Minimum Voltage (Vdc) 3.3
Typical Voltage (Vdc) 3.3, 5-15
Maximum Voltage (Vdc) 15
Header Standard
Environmental
Min. Operating Temp. (°C) -20, -40
Max. Operating Temp. (°C) 70, 80
Min. Storage Temp. (°C) -40
Max. Storage Temp. (°C) 80

Features

  • 128x32 Graphic OLED 1U HMI
  • Available Interfaces: Serial RS232, TTL, I2C, and USB
  • 25 key keypad matrix
  • 256KB of customizable fonts and bitmaps to enhance the graphical user experience
  • Programmable to display any language
  • 2 General Purpose Outputs
  • Two available voltage options: 5V, and low power 3.3V
  • Field upgradable firmware
  • Piezo Buzzer to provide audio feedback
  • Software controlled contrast and brightness with configurable time-out setting up to 90 minutes
  • Built in Horizontal or Vertical bar graphs
  • Extended temperature available for extreme environments of -20°C to 70°C
  • Hardware flow control
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle
  • Backed my Matrix Orbital's decades of research and development
