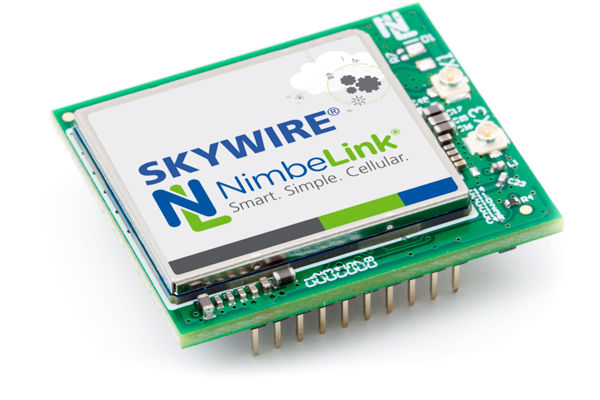

NL-SW-LTE-QBG96

The NL-SW-LTE-QBG96 patented Skywire® modem is end-device certified on multiple cellular networks worldwide and enables the fastest and most cost-effective time to market.

 NL-SW-LTE-QBG96 - Quecktel SkyWire LTE-M global modem, NB-IoT, GNSS
Part No. Description Price Stock
NL-SW-LTE-QBG96 Quecktel SkyWire LTE-M global modem, NB-IoT, GNSS $84 ∗
NL-SW-LTE-QBG96-B NimbeLink Skywire LTE Cat M1/NB IoT - Global $92 388
NL-SW-LTE-QBG96-C RF TXRX MODULE CELL/NAV U.FL TH $92 91
∗ Standard lead time is 1 week

Created by a product company for product companies, the NL-SW-LTE-QBG96 is available with bundled data plans from carriers, including AT&T, T-Mobile, and Verizon.

The modem uses the latest LTE-M and NB-IoT technology and has 2G Fallback. It also includes GNSS for satellite positioning services. The Skywire modem includes an embedded SIM card and a SIM card slot for multi-carrier support. The NimbeLink team and NL-SW-LTE-QBG96 Skywire modem take the complexity out of designing and deploying cellular IoT solutions, and get you to market fast!

Features

  • Global LTE-M, NB-IOT, and 2G coverage
  • Internal GNSS receiver for GPS, GLONASS, Beidou/Compass, Galileo, and QZSS location services
  • Solder down SIM onboard and removable SIM card slot
  • Carrier certifications complete, no additional work required
  • Antenna independent certification increases selection flexibility
  • Connectivity via USB or UART
  • Supports a wide range of I/O voltages for design flexibility
  • Development kits available
  • Skywire standard interface
  • Operating Temperature: -40°C to 85°C
  • Warranty Period: 1 year
