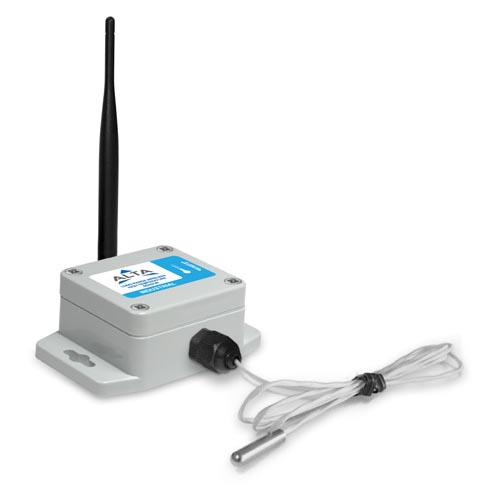

ALTA Industrial Wireless High Temperature Sensor

ALTA industrial wireless high temperature sensor use an RTD to accurately measure temperatures from -50°C to +370°C. Perfect for high temperature critical applications such as ovens, heaters, furnaces and boilers. User customization allows you to set the frequency of sensor readings and create notifications from the system when certain criteria have been met or exceeded.

 ALTA Industrial Wireless High Temperature Sensor - ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,900 MHz,3 foot probe
Part No. Description Price Stock
MNS2-4-IN-TS-HT-L03 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,433 MHz,3 foot probe $220 ∗
MNS2-4-IN-TS-HT-L10 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,433 MHz,10 foot probe $163 ∗
MNS2-4-IN-TS-HT-L25 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,433 MHz,25 foot probe $193 ∗
MNS2-8-IN-TS-HT-L03 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,868 MHz,3 foot probe $210 ∗
MNS2-8-IN-TS-HT-L10 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,868 MHz,10 foot probe $163 ∗
MNS2-8-IN-TS-HT-L25 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,868 MHz,25 foot probe $193 ∗
MNS2-9-IN-TS-HT-L03 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,900 MHz,3 foot probe $210 ∗
MNS2-9-IN-TS-HT-L10 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,900 MHz,10 foot probe $163 ∗
MNS2-9-IN-TS-HT-L25 ALTA INDUSTRIAL WIRELESS HIGH TEMPERATURE SENSOR,900 MHz,25 foot probe $193 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Packing List

  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna

Features

  • 900/868/433 MHz Operating Frequency
  • RTD Temperature Range: -50°C to +370°C (-58°F to +700°F)
  • RTD Accuracy at 0°C: +/- 3.3°C Standard (+/- 0.5°C Calibrated **)
  • Thermal Time Constant: 15 sec. max.
  • Weight: 3.7 oz.
  • Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: Up to 10 Year Battery Life.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option:
    • - 3.0 VDC Solar Panel
    • - 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
    • - Charging Temperature Range: 0° to 45°C (32° to 113°F)
    • - Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • Good for high temperature applications.

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
