ALTA Industrial Wireless Water Rope Sensor

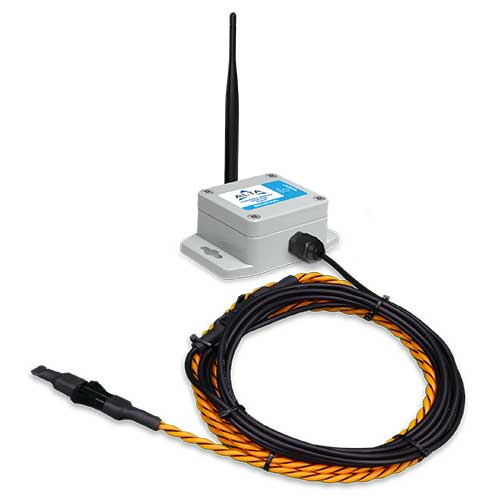

The ALTA Industrial Wireless Water Rope Sensor detects conductive liquids anywhere along the length of the detection rope by using two wires covered with conducting polymer. When water or conductive liquid contacts the rope, the sensor will immediately turn on the RF radio and transmit the data to the wireless gateway and iMonnit Online Sensor Monitoring and Notification System, allowing the user to immediately receive an alert by SMS text, email or voice call. The sensor rope dries quickly allowing the sensor to reset for next use. The sensor comes with an initial 10 foot section of water detection rope and can be expanded up to 100 feet by simply clicking additional 10 foot sections of detection rope together.

 ALTA Industrial Wireless Water Rope Sensor - ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,900 MHz
Part No. Description Price Stock
MNS2-4-IN-WS-WR ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,433 MHz $325 ∗
MNS2-4-IN-WS-WR-PA ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,433 MHz, HGA $164 ∗
MNS2-4-IN-WS-WR-SOL ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,433 MHz, Solar w/ Rechargeable Battery $189 ∗
MNS2-4-IN-WS-WR-SOL-PA ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,433 MHz, Solar w/ Rechargeable Battery, HGA $204 ∗
MNS2-8-IN-WS-WR ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,868 MHz $315 ∗
MNS2-8-IN-WS-WR-PA ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,868 MHz, HGA $164 ∗
MNS2-8-IN-WS-WR-SOL ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,868 MHz, Solar w/ Rechargeable Battery $189 ∗
MNS2-8-IN-WS-WR-SOL-PA ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,868 MHz, Solar w/ Rechargeable Battery, HGA $204 ∗
MNS2-9-IN-WS-WR ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,900 MHz $315 ∗
MNS2-9-IN-WS-WR-PA ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,900 MHz, HGA $305 ∗
MNS2-9-IN-WS-WR-SOL ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,900 MHz, Solar w/ Rechargeable Battery $355 ∗
MNS2-9-IN-WS-WR-SOL-PA ALTA INDUSTRIAL WIRELESS WATER ROPE SENSOR,900 MHz, Solar w/ Rechargeable Battery, HGA $345 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Packing List

  • 10 Ft. Water Detection Rope
  • Wireless Sensor
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna
  • Mounting Hardware

Features

  • 900/868/433 MHz Operating Frequency
  • Material: PE + alloy lead
  • Weight: 30g/meter
  • Pull Force Limit: 60kg
  • Fire Resistance: Second pressure plenum cable
  • Cable Diameter: 5.5mm
  • Core Resistance: 3ohm/100 meters
  • Maximum Exposed Temperature: 75°C (167°F)
  • Cable Length: 10 ft. (120 in.) included (expandable to 100 ft.)
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: Up to 10 Year Battery Life.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option:
    • - 3.0 VDC Solar Panel
    • - 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
    • - Charging Temperature Range: 0° to 45°C (32° to 113°F)
    • - Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • Senses immediate presence of water anywhere along rope.

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
