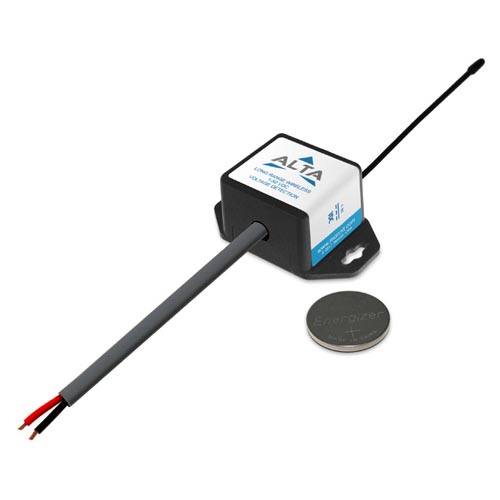

ALTA Wireless Voltage Detection - 200 VDC

The Monnit Voltage Detector - 200 VDC detects the presence or absence of electricity. It is intended for use on battery or other DC sources, up to 200 Volts. Not intended for use with AC Voltages. It is perfect for batteries, adapters, solar equipment, vehicles or machinery, and any other electrical appliance monitoring. The sensor triggers on voltage presence to voltage Absence and vice versa. The data is displayed as "Voltage Detected" or "No Voltage".

 ALTA Wireless Voltage Detection - 200 VDC - ALTA WIRELESS VOLTAGE DETECTION - 200 VDC, 900 MHz, COIN CELL POWERED
Part No. Description Price Stock
MNS2-4-W1-VD-200 ALTA WIRELESS VOLTAGE DETECTION - 200 VDC, 433 MHz, COIN CELL POWERED $145 ∗
MNS2-8-W1-VD-200 ALTA WIRELESS VOLTAGE DETECTION - 200 VDC, 868 MHz, COIN CELL POWERED $135 ∗
MNS2-9-W1-VD-200 ALTA WIRELESS VOLTAGE DETECTION - 200 VDC, 900 MHz, COIN CELL POWERED $135 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Packing List

  • Wireless Sensor
  • CR2032 - Coin Cell Battery
  • Mounting Hardware

Features

  • 900/868 MHz Operating Frequency
  • Maximum Rated Input Voltage: 200.0 Volts
  • Minimum Rated Input Voltage: -200.0 Volts
  • Voltage Detection Threshold: Present above ~2 VDC, Absent below ~1.8 VDC (Indeterminant from 1.8 to 2 VDC)
  • Trigger: Transmits data upon state change
  • Open Circuit Reading: Voltage absent
  • Response Time: ~2 Seconds
  • Lead Wire Length: 2 Wires, 1 ft (12 in), Red (+), Black (-), 22 AWG
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
  • Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery
  • Dimension: 2.0 in x 1.125 in x 0.875 in
  • Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )
  • Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 4 years. **
  • Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures
  • Enclosure Material: ABS

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
