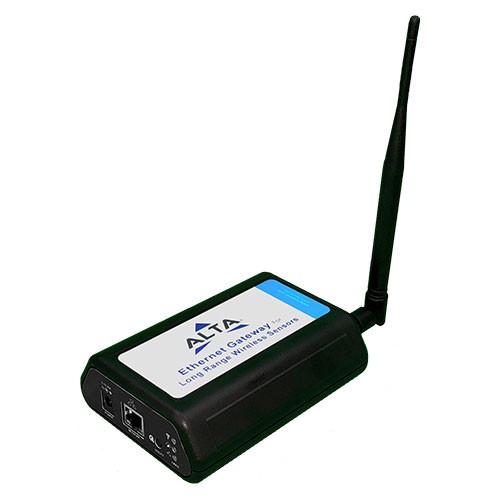

ALTA Ethernet Gateway 4

Monnit's Ethernet Gateways allow your Monnit Wireless Sensors to communicate with the iMonnit™ Online Wireless Sensor Monitoring and Notification System without the need for a PC. Simply provide power and plug the gateway into an open Ethernet network port with an internet connection. It will then automatically connect with our online servers, providing the perfect solution for commercial locations where there is an active internet connection.The Power-Over-Ethernet option features modified gateway hardware allowing it to be powered through the Ethernet port. Does not include POE Power Injector.

 ALTA Ethernet Gateway 4 - ALTA ETHERNET GATEWAY 4, 900 MHz, Standard Power Supply
Part No. Description Price Stock
MNG2-4-EGW-CCE ALTA ETHERNET GATEWAY 4, 433 MHz, Standard Power Supply $230 ∗
MNG2-4-EGW-CCE-POE ALTA ETHERNET GATEWAY 4, 433 MHz, Power Over Ethernet $275 ∗
MNG2-8-EGW-CCE ALTA ETHERNET GATEWAY 4, 868 MHz, Standard Power Supply $220 ∗
MNG2-8-EGW-CCE-POE ALTA ETHERNET GATEWAY 4, 868 MHz, Power Over Ethernet $264 ∗
MNG2-9-EGW-CCE ALTA ETHERNET GATEWAY 4, 900 MHz, Standard Power Supply $220 ∗
MNG2-9-EGW-CCE-POE ALTA ETHERNET GATEWAY 4, 900 MHz, Power Over Ethernet $240 ∗
∗ Standard lead time is 1 week

Packing List

  • Ethernet Cable
  • Ethernet Gateway
  • Ethernet Gateway Quick Start Guide
  • Power Supply
  • RP SMA Antenna

Features

  • 900/868/433 MHz Operating Frequency
  • Ethernet Types: MNG2-x-EGW-CCE
  • Hardware: 10/100 Ethernet Controller
  • IEEE Standard Compliance: 802.3 - 2002
  • Operation: Full - and Half-Duplex
  • Cross-Over Correction: Automatic MDI/MDI-X
  • Protocols Supported: DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP
  • Cable Connector: RJ45
  • Device Memory: Up to 15,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored.)
  • Input Current (no loading): 5.0 VDC @ 1A
  • LED Lights: Connectivity, Server, Network Status
  • Dimension: 5.004 x 3.8 x 1.51 in.
  • Enclosure Material: ABS
  • Storage Temperature:: -20 to +60°C (-4 to 140°F)
  • Operating Temperature: +5 to +45°C (41 to 113°F)
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
  • Warranty Period: 3 years
