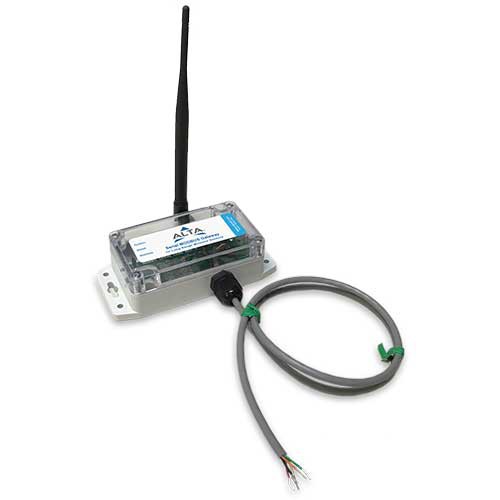

ALTA Serial Modbus GatewayThe Monnit Serial Modbus Gateway acts as a data concentrator for Monnit wireless sensor networks. This device incorporates Monnit's Access Point Node (APN) and Serial RS-232C and RS-485 Interfacing hardware.
|
 |
| Part No. | Description | Price | Stock | |
|---|---|---|---|---|
| MNG2-4-SG-SMG | ALTA SERIAL MODBUS GATEWAY, 433 MHz | $285 | ∗ | |
| MNG2-8-SG-SMG | ALTA SERIAL MODBUS GATEWAY, 868 MHz | $275 | ∗ | |
| MNG2-9-SG-SMG | ALTA SERIAL MODBUS GATEWAY, 900 MHz | $275 | ∗ | |
| MNG2-91-SG-SMG | ALTA SERIAL MODBUS GATEWAY, 920 MHz Korea | $275 | ∗ |
∗ Standard lead time is 1 week
We recommend purchasing the Serial Modbus Gateway - USB programmer and software to help you configure and use your Monnit SMG Gateway.
Packing List
- Serial Modbus Gateway
- RP SMA Antenna
- High Gain Antenna
Features
- 900/868/433 MHz Operating Frequency
- Works with Monnit Sensor Networking Solutions
- Communicates with MODBUS RTU / ASCII Serial Protocols
- Supports RS-232C / RS-485 Interfacing
- NEMA 4X / IP66 Rated Enclosure
- RP SMA Antenna Connector (RP-SMA Gain: 5.0 dBi Standard)
- Input Voltage: 4.5 - 36.0 VDC
- LED Lights: Wireless Activity, Wired Activity, System Status
- Enclosure Material: Durable, Impact-Resistant UV Stabilized Polycarbonate (IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 Rated)
- Dimension: 179.603 x 90.678 x 41.30 mm
- Weight: 16 oz.
- Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
- Warranty Period: 3 years
