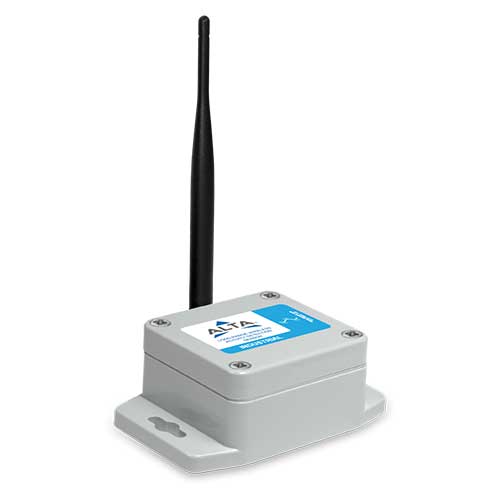

ALTA Industrial Wireless Activity Detection Sensor

ALTA industrial wireless activity detection sensors can be used in a host of applications where detecting vibration, or sudden movement etc. is required. This version of the activity sensor detects sudden movement or non-movement of a given device or surface, and alerts you of the change.

 ALTA Industrial Wireless Activity Detection Sensor - ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 900 MHz
Part No. Description Price Stock
MNS2-4-IN-MV-VD ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 433 MHz $235 ∗
MNS2-4-IN-MV-VD-SOL ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 433 MHz, Solar w/ Rechargeable Battery $259 ∗
MNS2-8-IN-MV-VD ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 868 MHz $225 ∗
MNS2-8-IN-MV-VD-PA ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 868 MHz, High Gain Leaded Puck $220 ∗
MNS2-8-IN-MV-VD-SOL ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 868 MHz, Solar w/ Rechargeable Battery $248 ∗
MNS2-8-IN-MV-VD-SOL-PA ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 868 MHz, Solar w/ Rechargeable Battery, HGA $264 ∗
MNS2-9-IN-MV-VD ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 900 MHz $225 ∗
MNS2-9-IN-MV-VD-PA ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 900 MHz, High Gain Leaded Puck $240 ∗
MNS2-9-IN-MV-VD-SOL ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 900 MHz, Solar w/ Rechargeable Battery $265 ∗
MNS2-9-IN-MV-VD-SOL-PA ALTA INDUSTRIAL WIRELESS ACTIVITY DETECTION SENSOR, 900 MHz, Solar w/ Rechargeable Battery, HGA $241 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Packing List

  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna

Features

  • 900/868/433 MHz Operating Frequency
  • Sensitivity: 0.05 g
  • Timer Resolution: Minutes
  • Weight: 3.7 oz.
  • Detects sudden movement
  • Tell if a motor or machine is on or off
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: Up to 10 Year Battery Life.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option:
    • - 3.0 VDC Solar Panel
    • - 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
    • - Charging Temperature Range: 0° to 45°C (32° to 113°F)
    • - Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
