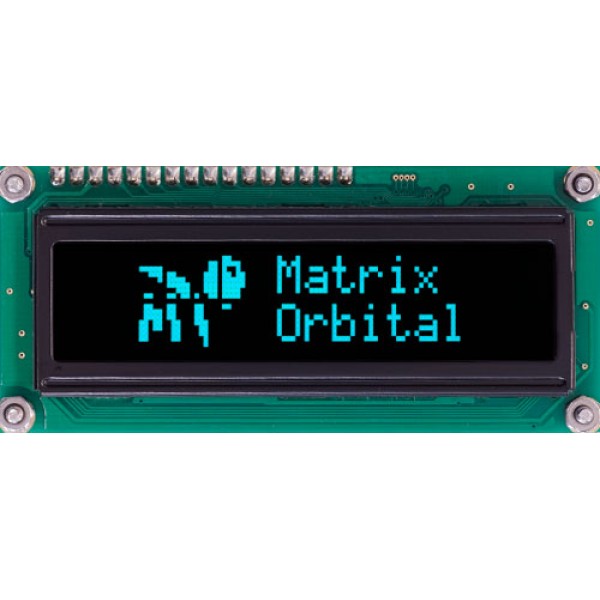

MOU-AO162A

The MOU-AO162A is an economy intelligent 16x2 USB OLED display. Engineered to quickly and easily add a powerful HMI to any application.
Our Intelligent Character USB OLED displays provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing. This USB OLED displays features optional on-board medium digits, bar graphs and 3 GPOs will allow fast development for any application.

 MOU-AO162A - 16x2 USB OLED, 5V Power, 3 General Purpose Outputs, White Text
Part No. Description Price Stock
MOU-AO162A-OW 16x2 USB OLED, 5V Power, 3 General Purpose Outputs, White Text $45 ∗
MOU-AO162A-OY 16x2 USB OLED, 5V Power, 3 General Purpose Outputs, Yellow Text $45 ∗
∗ Standard lead time is 1 week

Specification

Module
Family/Series Economy Display
Module Width (mm) 80
Module Height (mm) 36
Module Thickness (mm) 23.7
Screen
Text Color Blue, Green, Red, White, Yellow
Background Color Black
Display Type Character OLED
Display Mode Transmissive
Backlight Type None
Diagonal Screen Size (in) 2.3
Viewing Area Width (mm) 66
Viewing Area Height (mm) 16
Active Area Width (mm) 56.95
Active Area Height (mm) 11.85
Resolution Width (Pixels) 80
Resolution Height (Pixels) 16
Pixel Pitch Width (mm) 0.6
Pixel Pitch Height (mm) 0.7
Pixel Width (mm) 0.55
Pixel Height (mm) 0.65
Character Columns 16
Character Rows 2
Character Pitch Width (mm) 3.6
Character Pitch Height (mm) 6.3
Character Width (mm) 2.95
Character Height (mm) 5.55
Font Japanese, European
Viewing Direction Any
Viewing Angle 160
HMI
Touchscreen None
Keypad None
Keys None
Haptic Feedback None
Audio Feedback None
GPO's 3
Advanced GPO's None
DOW None
Integrated LED's None
Electrical
Interface USB
Command Protocol Matrix Orbital
Controller ATMega8535
Negative Voltage None
Backlight Driver None
Minimum Voltage (Vdc) 5
Typical Voltage (Vdc) 5
Maximum Voltage (Vdc) 5
Header Standard
Environmental
Min. Operating Temp. (°C) -20
Max. Operating Temp. (°C) 70
Min. Storage Temp. (°C) -20
Max. Storage Temp. (°C) 70

Features

  • 16x2 Intelligent USB OLED
  • Available Interfaces: USB
  • Communication speed of 9600 and 19.2k hardware selectable
  • 5V voltage
  • 3 General Purpose Outputs
  • FT232 OLED
  • Built in Horizontal or Vertical bar graphs
  • Temperature of 0°C to 50°C
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle
  • Semi-custom designs available
  • Backed my Matrix Orbital`s decades of research and development
