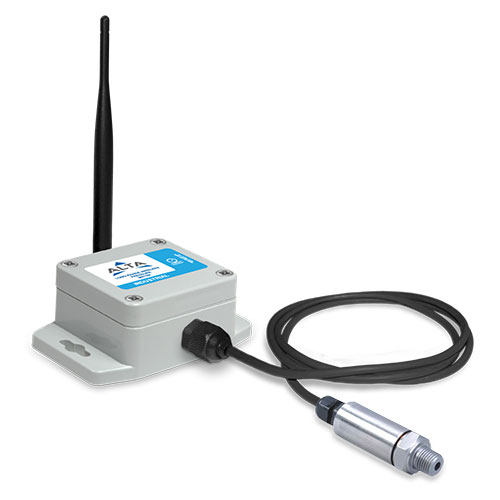

ALTA Industrial Wireless Pressure Meters - 50 PSIG

ALTA industrial wireless pressure meters measure pressure and transmit the pressure measurement to iMonnit. By connecting the Monnit wireless pressure meter to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the iMonnit Online Sensor Monitoring and Notification System. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. User customization allows you to set notifications and alerts from the system so you can know immediately if pressure is above or below an optimal range.

 ALTA Industrial Wireless Pressure Meters - 50 PSIG - ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 900 MHz
Part No. Description Price Stock
MNS2-4-IN-PS-050 ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 433 MHz $505 ∗
MNS2-4-IN-PS-050-PA ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 433 MHz, High Gain Leaded Puck $550 ∗
MNS2-8-IN-PS-050 ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 868 MHz $495 ∗
MNS2-8-IN-PS-050-PA ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 868 MHz, High Gain Leaded Puck $512 ∗
MNS2-8-IN-PS-050-SOL ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 868 MHz, Solar w/ Rechargeable Battery $539 ∗
MNS2-8-IN-PS-050-SOL-PA ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 868 MHz Solar w/ Rechargeable Battery, HGA $556 ∗
MNS2-9-IN-PS-050 ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 900 MHz $495 ∗
MNS2-9-IN-PS-050-PA ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 900 MHz, High Gain Leaded Puck $467 ∗
MNS2-9-IN-PS-050-SOL ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 900 MHz, Solar w/ Rechargeable Battery $490 ∗
MNS2-9-IN-PS-050-SOL-PA ALTA INDUSTRIAL WIRELESS PRESSURE METERS - 50 PSIG, 900 MHz Solar w/ Rechargeable Battery, HGA $507 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Monnit ALTA Industrial Sensors come in an IP65, NEMA 4X, CE rated, sealed, and weatherproof enclosure. They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).

An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell, the battery alone could continue to power the sensor for up to 8-10 years.

Packing List

  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna

Features

  • 900/868/433 MHz Operating Frequency
  • Operating Temperature: 0 to 175°F (-18 to 79°C)
  • Thermal Effect on Reading: +/-0.02% FS/°F. (includes zero and span).
  • Media: Gas, Liquid or Vapor
  • Response Time: 50 msec.
  • Stability: 1.0% FS/year (Typ.).
  • Wire Length: 1 Meter shielded cable (between gauge and wireless unit)
  • Accuracy: 0.25% FS; 0.20% RSS; Absolute Ranges - 0.5% FS; 0.35% RSS. (Includes linearity, hysteresis, and repeatability).
  • Maximum Rated Input Voltage: 5.5 V
  • Voltage Range: 0 - 5.2 V
  • Voltage Resolution: ~3 mV
  • Voltage Measurement Accuracy: +/- 3% FS
  • Pressure Measurement Accuracy: +/- 3% FS
  • User Calibrated Accuracy: +/- 1% FS
  • Process Connection: 1/4" NPT-Male Standard
  • Pressure Transducer(s): 50 or 300 PSIG (Others available upon request)
  • Weight: 10.3 oz.
  • Supply Voltage: 2.7 - 3.8 VDC (3.0 - 3.8 VDC using power supply)
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: Up to 10 Year Battery Life.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option:
    • - 3.0 VDC Solar Panel
    • - 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
    • - Charging Temperature Range: 0° to 45°C (32° to 113°F)
    • - Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Max Output Voltage: 5.5 V
  • User Calibrated Pressure Accuracy: +/- (0.5% of reading + 0.5% FS)
  • Works with Gas, Liquid or Vapor.
  • No External Power Required.
  • Measures pressure from 0-50 PSIG.

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
