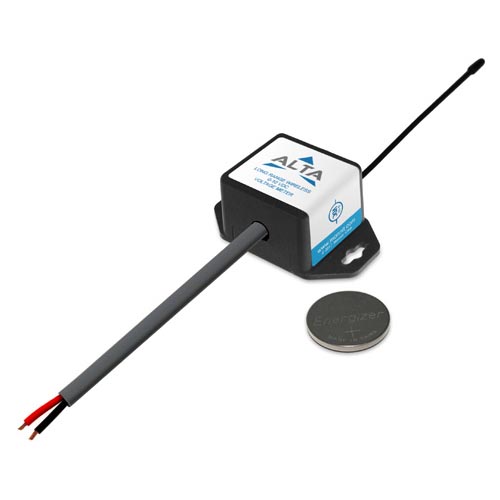

ALTA Wireless Voltage Meters - 0-10 VDC

ALTA wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 10 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.

Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a "voltage observer". Cannot be used for AC voltage measurement.

 ALTA Wireless Voltage Meters - 0-10 VDC - ALTA WIRELESS VOLTAGE METERS - 0-10 VDC, 900 MHz - COIN CELL POWERED
Part No. Description Price Stock
MNS2-8-W1-VM-010 ALTA WIRELESS VOLTAGE METERS - 0-10 VDC, 868 MHz - COIN CELL POWERED $130 ∗
MNS2-9-W1-VM-010 ALTA WIRELESS VOLTAGE METERS - 0-10 VDC, 900 MHz - COIN CELL POWERED $130 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

WARNING: Use caution when interfacing to the Monnit Wireless Voltage Meter. Negative voltages, any kind of AC Voltages, or DC Voltage exceeding 20V WILL DAMAGE the electronics of the Monnit Wireless Sensor. Monnit is not responsible for troubleshooting, replacing or reimbursing damages incurred by disregarding this warning.

Packing List

  • Wireless Sensor
  • CR2032 - Coin Cell Battery
  • Mounting Hardware

Features

  • 900/868 MHz Operating Frequency
  • Max sensor input voltage up to 20 volts DC (will return a max of 10 volts in software)
  • Interfaces with other devices up to 10 volts DC
  • Voltage Range: 0 - 10 Volts DC
  • Resolution: ~5 mV
  • User Calibrated Accuracy: + /- .5% FS
  • Open Circuit Voltage: ~0.000 Volts
  • Maximum Rated Input Voltage: 20 Volts
  • Lead Wire Length: 2 Wires, 1 ft. ( 12 in.), Red (+), Black (-), 18 AWG (Custom lengths available upon request)
  • Weight: 4.0
  • Voltage Resolution: 0.01 VDC
  • Accuracy 25°C: 1V or above: + /- 1% (0.5% typical); 500mV: + /- 2% typical; 250mV: + /- 4% typical; 150mV: + /- 7% typical
  • Minimum Voltage Detected: 150mV
  • Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery
  • Dimension: 2.0 in x 1.125 in x 0.875 in
  • Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )
  • Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 4 years. **
  • Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures
  • Enclosure Material: ABS

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
