METRIO

METRIO is designed for distributed remote I/O connectivity. The METRIO can be connected to any Modbus-RTU master using RS485 wire, or using an optional wireless option card. Up to 12 I/O expansion boards can be installed onto the METRIO base carrier, for a flexible mix of I/O, and any of our over 40 peripheral boards.

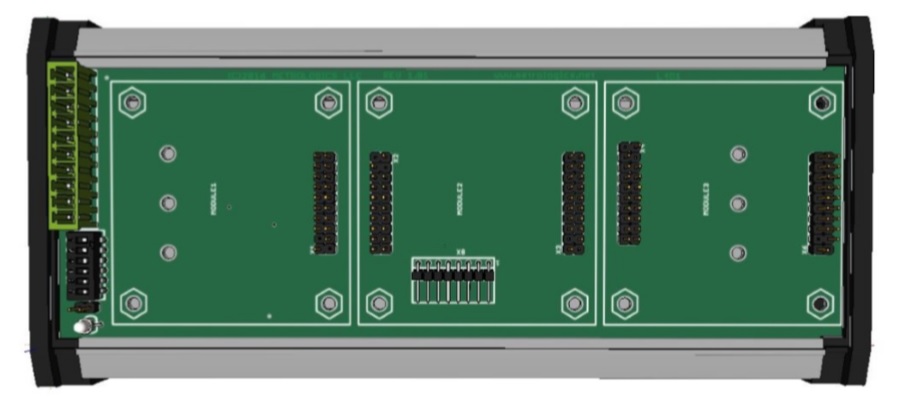

 METRIO - Remote I/O Unit, bare board, non-isolated RS485, no enclosure
Part No. Description Price Stock
METRIO Remote I/O Unit, bare board, non-isolated RS485, no enclosure
METRIO-E Remote I/O Unit, non-isolated RS485, mounted in DIN-rail enclosure
METRIO-I Remote I/O Unit, bare board, isolated RS485, no enclosure
METRIO-I-E Remote I/O Unit, isolated RS485, mounted in DIN-rail enclosure

Features

  • Remote I/O expansion system
  • Small form factor for mounting in your enclosure
  • 12 to 30 VDC power input using on-board terminal blocks
  • Connects to your Modbus-RTU master as a slave I/O unit:
    • - RS485, 2-wire (direct connection using on-board terminal blocks)
    • - Long-range Zigbee wireless mesh radio (using a plug-in expansion card in slot 1), or 900 MHz radio module
  • On-board slave node addressing switch
  • On-board LED's for communication and power status
  • PC based application for configuring wireless node address, and setting up tag based Modbus-RTU registers
  • Stack up to six optional expansion I/O boards in any combination
  • DIN-Rail mounting housing included, tool-less installation
  • Warranty Period: 3 years
