CG1118-12064

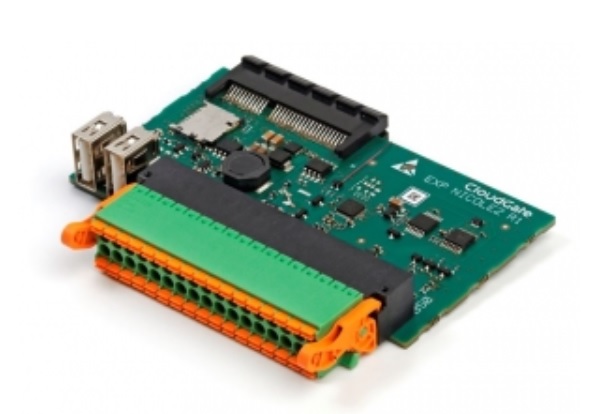

The Smart City Card allows you to make a full-fledged Smart City Solution with your CloudGate Gateway.

The card has the potential to connect up to 8 analog sensors (0 - 4.8V input) for air quality monitoring, I2C sensors for other sensors like humidity, lux, barometric pressure, a Street Light (0-10V) output, a digital output for an alarm or indicative light and a microphone input to listen to environmental sound. The card also has 2x USB slots that would even allow to add a Wi-Fi or Bluetooth USB dongle to do human traffic counting for example.

 CG1118-12064 - Option CloudGate Smart City Card
Part No. Description Price Stock
CG1118-12064 Option CloudGate Smart City Card $247 ∗
∗ Standard lead time is 1 week

Features

  • 8 analog inputs (eg. air quality sensors)
  • 1 closed current loop input (0-20mA)
  • 1 analog output (0-10V, eg. LED dimming)
  • 1 digital output (eg. alarm)
  • Modbus RTU over RS-485 (for wired sensors, eg. vibration, temperature, utility meters, etc.)
  • I2C interface
  • Microphone input *
  • Speaker output *
  • 2 USB host connectors *
  • MicroSD socket (eg. sensor data storage during disconnection from network) *
  • Analog inputs are fully supported in LuvitRED by means of the 'GPIO In' node.
  • Analog output is fully supported in LuvitRED by means of the 'GPIO Out' node.
  • I2C interface is fully supported in LuvitRED by means of the 'I2C' node.
  • Modbus RTU over RS-485 is fully supported by LuvitRED on serial interface /ttySP0.
  • Warranty Period: 3 years

* (these interfaces are not yet available through software)
