2JW1001

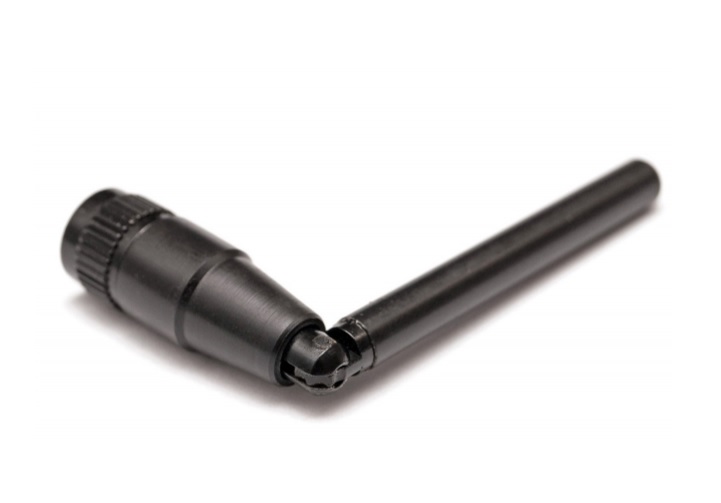

Swivel Antenna - GPS/GLONASS/BeiDou/Galileo 1561-1606 MHz - Black - SMA, External - Connector Mount

2JW1001 - Passive GNSS connector mount
Part No. Description Price Stock
2JW1001 Passive GNSS connector mount $9 24

Features


  • Connector Mount
  • Low Profile
  • High Efficiency
  • Ground Plane Dependent
  • Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
  • Frequency: 1561.098, 1575.42, 1598-1606
  • Dimensions: 7.10cm × Φ1.00cm (2.80in × Φ0.39in)
  • Operating Temperature: -20°C to 65°C
