MINI-MAX/STM32F7

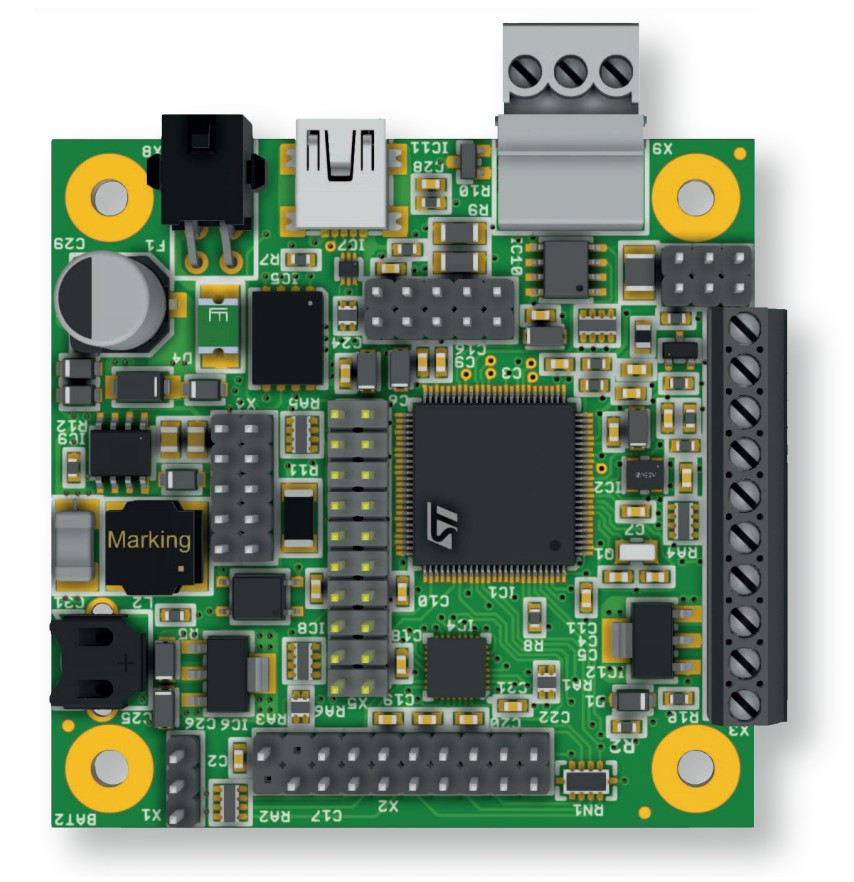

MINI-MAX/STM32F7 is a powerful, yet easy-to-use microcomputer system based on the latest generation of flash-based ARM micro-controllers from ST Microelectronics (STM).

 MINI-MAX/STM32F7 - Micro-controller System based on Cortex-M7 Microcontroller
Part No. Description Price Stock
MINI-MAX/STM32F7 Micro-controller System based on Cortex-M7 Microcontroller $119 ∗
∗ Standard lead time is 1 week

MINI-MAX/STM32F7 is fully assembled and ready to use out of the box. MINI-MAX/STM32F7 has 1MB of flash memory that can store thousands of lines of C or ARM Assembly language programs. Programs are downloaded into the MINI-MAX/STM32F7 with a personal computer through the RS232 serial (COM) port or JTAG port. Downloads typically take only few seconds.

Features

  • ARM® 32-bit Cortex®-M7
  • STM32F745VGT6 Microprocessor
  • 25 MHz crystal, with up to 216 MHz internal operation
  • 256Mb (32Mx8) SPI flash
  • 4x Analog inputs, 12-bit resolution
  • 1x Digital output, open drain
  • 1x Digital input, dry contact
  • 2x RS232 Serial ports with RTS/CTS handshake lines
  • 1x RS485 Serial port (2 Wire)
  • 1x USB Device port
  • JTAG programming interface
  • Screw terminal block for analog circuits
  • Expansion bus interface to low-cost peripheral boards
  • 32.768KHz crystal and 3V battery holder for RTC
  • Ultra Low Power, USB or Battery operation possible, peripheral shutdown capability
  • 3.3 Volt on-board regulator
  • Warranty Period: 3 years
