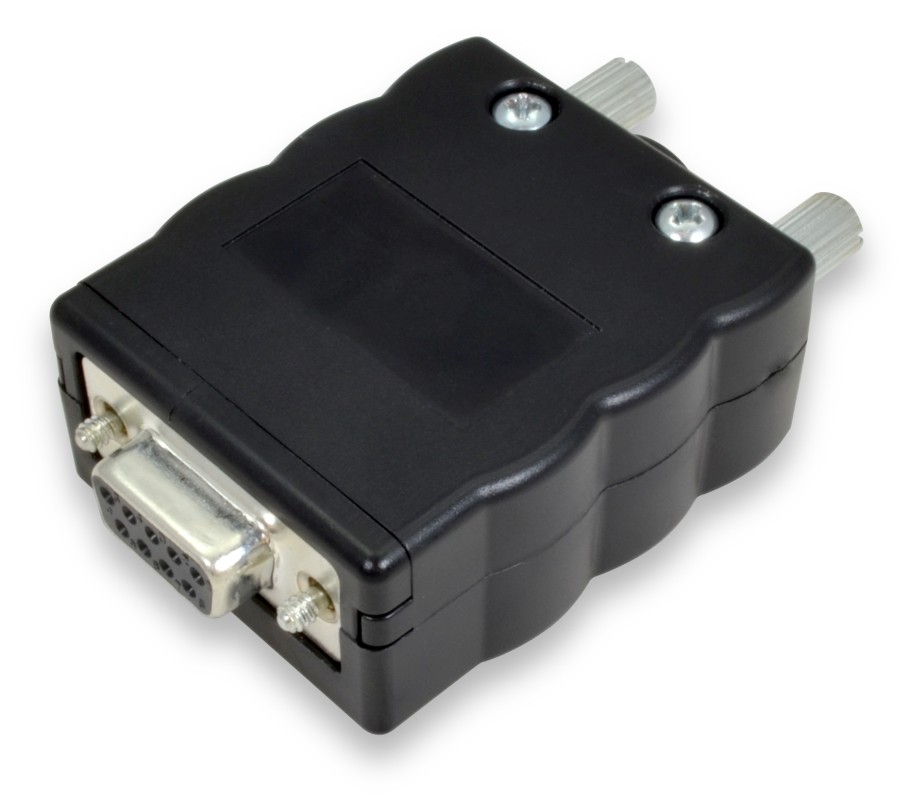

Make connections quickly and reliably with this breakout board, which brings every pin of its DB9 connector out to screw or spring terminals. This breakout board comes mounted in an attractive case. It is available with either Thumbscrews or Jack Screws for connector hardware; see pricing table below for all part numbers.This product is available with both male and female connectors.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with RS-232 serial ports, MODBUS connections, I/O cards, and other devices that use a DB-9 connector.
Technically, the correct term for a DB9 connector is DE9, but that term is not commonly used.
DB9 Female Breakout Board with Enclosure, Screw Terminals, Jack Screws
$14
2
BRKEAD9F-T
DB9 Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws
$16
∗
BRKEAD9M-R
DB9 Male Breakout Board with Enclosure, Screw Terminals, Jack Screws
$14
3
BRKEAD9M-T
DB9 Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws
$16
∗
BRKEGD9F-R
DB9 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws
$14
2
BRKEGD9F-T
DB9 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws
$16
∗
BRKEGD9M-R
DB9 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws
$14
2
BRKEGD9M-T
DB9 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws
$16
∗
∗ Standard lead time is 1 week
Enclosure
The breakout board comes already installed in a sturdy black plastic hood enclosure with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.
Terminal Options
This product is available with two different wire terminal options:
Spring Terminals (BRKEGDx)
Screw Terminals (BRKEADx)
Hardware Options
This product is available in two different connector hardware options:
Thumb Screws (-T option)
Jack Screws (-R option)
Features
Comes mounted in an enclosure
Cost effective and reliable cable termination
DB9 connector
Terminal for each of the 9 lines, plus shield
Available with spring terminals or screw terminals
Terminals accomodate wire sizes from 16AWG to 24AWG
