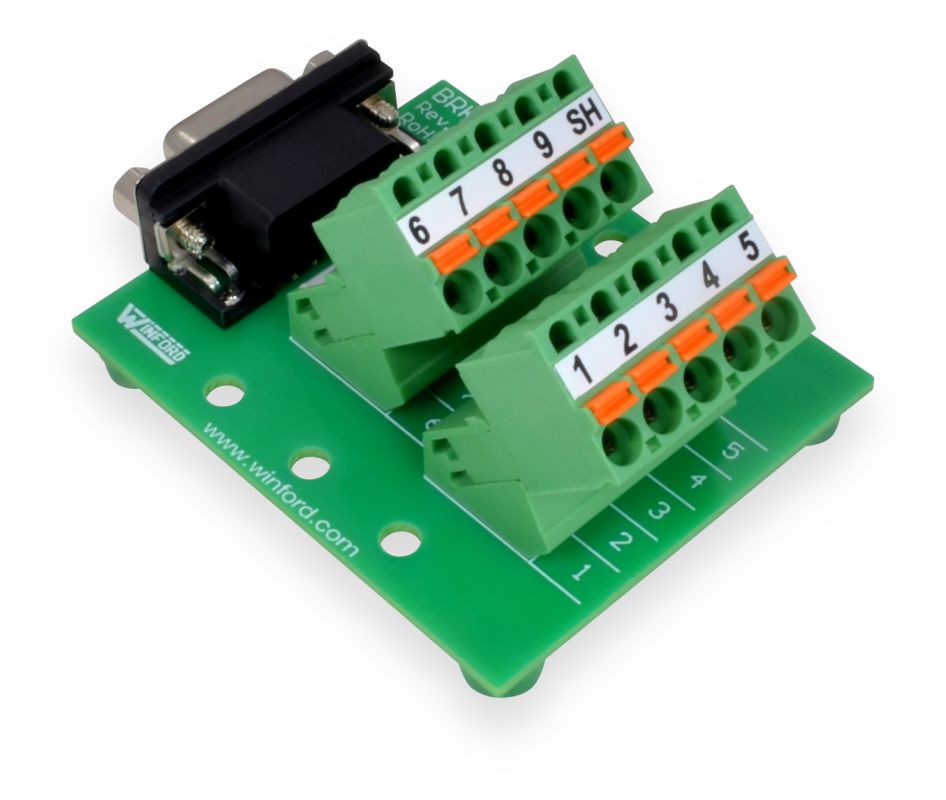

DB9 Breakout Boards with Pluggable Terminals

Make connections quickly and reliably with this breakout board, which brings every pin of its DB9 connector out to pluggable terminal blocks. This product is available with male or female connectors, and with screw terminals or spring terminals.
This board features removable terminal blocks which can be unplugged and removed from their bases.

To utilize this board's plug-in feature, simply pull the terminal row away from its base, make the desired connections, and plug the assembled piece back into its base. Terminals can also be populated while still plugged into their base.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with RS-232 serial ports, MODBUS connections, I/O cards, and other devices that use a DB-9 connector.

 DB9 Breakout Boards with Pluggable Terminals - DB9 Female Breakout Board, R/A Connector, 5mm Pluggable Spring Terminals, Feet
Part No. Description Price Stock
BRKLD9F-RG-DIN DB9 Female Breakout Board, R/A Connector, 5mm Pluggable Spring Terminals, DIN Rail Mount $22 ∗
BRKLD9F-RG-FT DB9 Female Breakout Board, R/A Connector, 5mm Pluggable Spring Terminals, Feet $20 ∗
BRKLD9F-RW-DIN DB9 Female Breakout Board, R/A Connector, 5mm Pluggable Screw Terminals, DIN Rail Mount $22 ∗
BRKLD9F-RW-FT DB9 Female Breakout Board, R/A Connector, 5mm Pluggable Screw Terminals, Feet $20 ∗
BRKLD9M-RG-DIN DB9 Male Breakout Board, R/A Connector, 5mm Pluggable Spring Terminals, DIN Rail Mount $22 ∗
BRKLD9M-RG-FT DB9 Male Breakout Board, R/A Connector, 5mm Pluggable Spring Terminals, Feet $20 ∗
BRKLD9M-RW-DIN DB9 Male Breakout Board, R/A Connector, 5mm Pluggable Screw Terminals, DIN Rail Mount $22 ∗
BRKLD9M-RW-FT DB9 Male Breakout Board, R/A Connector, 5mm Pluggable Screw Terminals, Feet $20 ∗
∗ Standard lead time is 1 week

Terminal Options

This product is available with two different wire terminal options:

Spring Terminals Screw Terminals
Spring Terminals
(BRKLD9x-RG-x)		 Screw Terminals
(BRKLD9x-RW-x)

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

Thumb Screws (-T option) Jack Screws (-R option)
DIN Rail Mount (-DIN) Rubber Feet (-FT)

Features

  • Plug-in/detachable terminal blocks can be removed from their base
  • Terminals for each of the 9 lines, plus shield
  • Terminals accomodate wire sizes from 12AWG to 24AWG
  • Terminal pitch is 5mm -- very comfortable spacing
  • Available with spring or screw terminals
  • Available with DIN or feet mounting options
  • Approximate dimensions: 2.4" x 2.0"
