DB15 Breakout Board with Enclosure

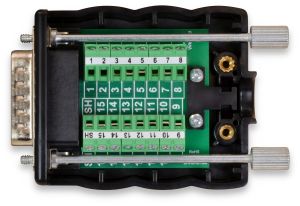

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15 connector out to screw or spring terminals. This breakout board comes mounted in an attractive case. It is available with either Thumbscrews or Jack Screws for connector hardware; see pricing table below for all part numbers.This product is available with both male and female connectors.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, CNC equipment, and other devices that use a DB-15 connector.

Technically, the correct term for a DB15 connector is DA15, but that term is not commonly used.

 DB15 Breakout Board with Enclosure - DB15 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws
Part No. Description Price Stock
BRKEAD15F-R DB15 Female Breakout Board with Enclosure, Screw Terminals, Jack Screws $17 ∗
BRKEAD15F-T DB15 Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws $19 ∗
BRKEAD15M-R DB15 Male Breakout Board with Enclosure, Screw Terminals, Jack Screws $17 ∗
BRKEAD15M-T DB15 Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws $19 ∗
BRKEGD15F-R DB15 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws $17 ∗
BRKEGD15F-T DB15 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws $19 ∗
BRKEGD15M-R DB15 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws $17 ∗
BRKEGD15M-T DB15 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws $19 ∗
∗ Standard lead time is 1 week

Enclosure

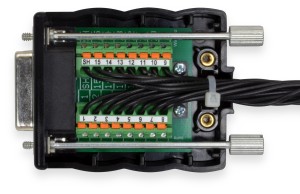

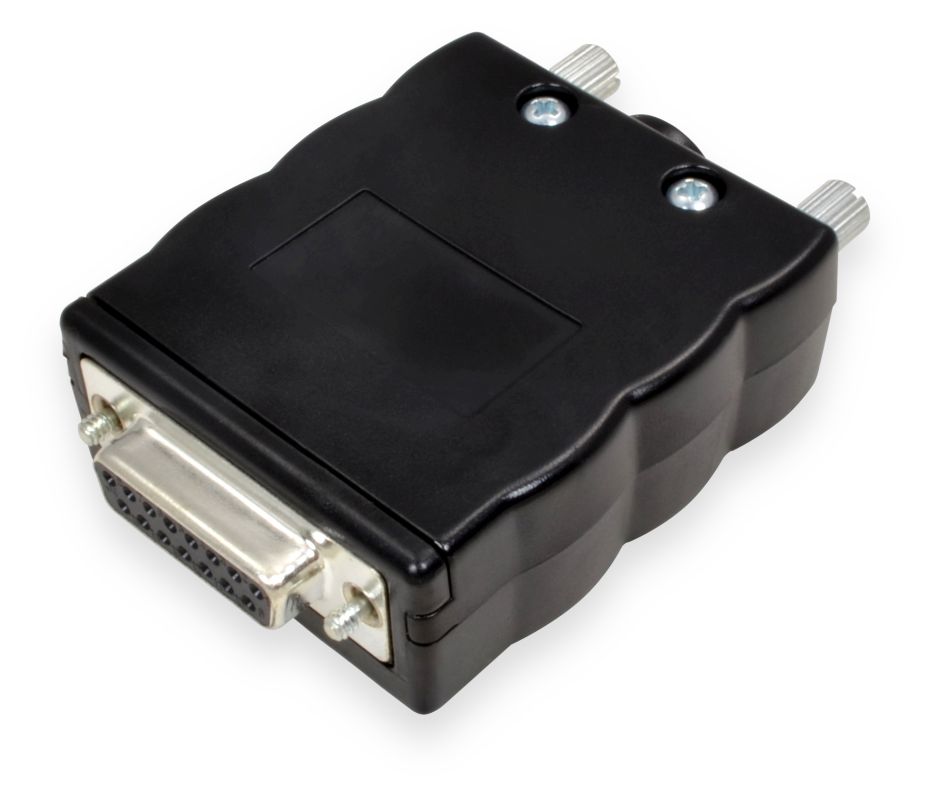

The breakout board comes already installed in a sturdy black plastic hood enclosure with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Terminal Options

This product is available with two different wire terminal options:

Spring Terminals Screw Terminals
Spring Terminals
(BRKEGDx)		 Screw Terminals
(BRKEADx)

Hardware Options

This product is available in two different connector hardware options:

Thumb Screws (-T option) Jack Screws (-R option)
Thumb Screws
(-T option)		 Jack Screws
(-R option)

Features

  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • DB15 connector
  • Terminal for each of the 15 lines, plus shield
  • Available with spring terminals or screw terminals
  • Terminals accomodate wire sizes from 16AWG to 24AWG
  • Convenient strain relief feature for wires
  • Connection points are labeled with pin numbers
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
  • Approximate dimensions: 2.9"L x 1.9"W x 0.8"H
