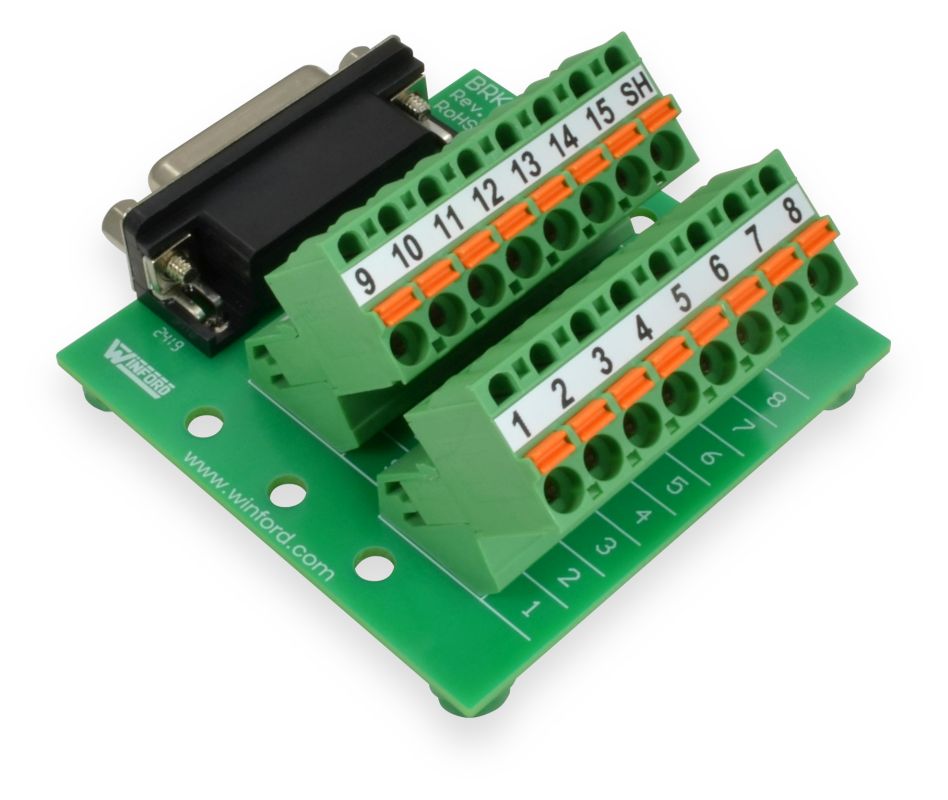

DB15 Breakout Boards with Pluggable Terminals Make connections quickly and reliably with this breakout board, which brings every pin of its DB15 connector out to pluggable terminal blocks. This product is available with male or female connectors, and with screw terminals or spring terminals. This board features removable terminal blocks which can be unplugged and removed from their bases. To utilize this board's plug-in feature, simply pull the terminal row away from its base, make the desired connections, and plug the assembled piece back into its base. Terminals can also be populated while still plugged into their base. 3D ModelsDocuments

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, CNC equipment, and other devices that use a DB-15 connector.

Technically, the correct term for a DB15 connector is DA15, but that term is not commonly used.

Terminal Options

This product is available with two different wire terminal options:

Spring Terminals (BRKLD15x-RG-x)	Screw Terminals (BRKLD15x-RW-x)

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount (-DIN)	Rubber Feet (-FT)
