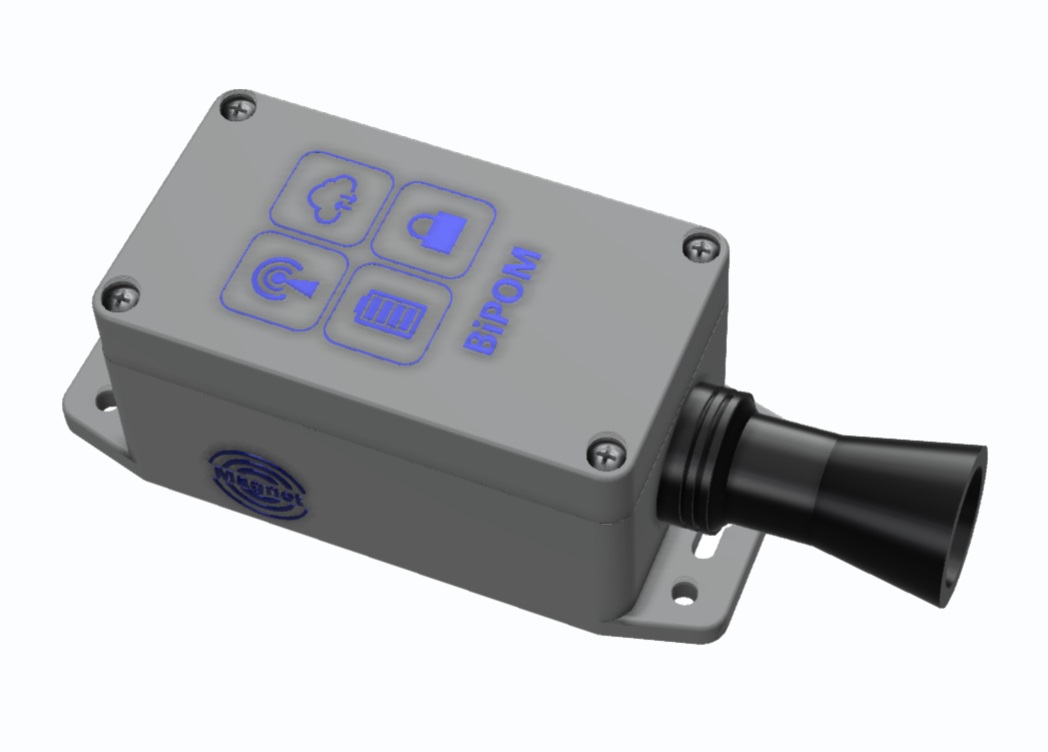

Ultrasonic Distance Sensor

Outdoor Ultrasonic Distance sensor based on BiPOM's WillowBee LoRaWAN module.

 Ultrasonic Distance Sensor - Outdoor Ultrasonic Distance Sensor, LoraWAN 868MHz internal antenna, Industrial IP67
Part No. Description Price Stock
WSO-8-AI-UD-1 Outdoor Ultrasonic Distance Sensor, LoraWAN 868MHz internal antenna, Industrial IP67 $319 ∗
WSO-9-AI-UD-1 Outdoor Ultrasonic Distance Sensor, LoraWAN 915MHz internal antenna, Industrial IP67 $319 ∗
∗ Standard lead time is 1 week

Specifications

  • Ultra-Low Power
  • Battery operation
  • User configurable
  • Adjustable power output
  • Maximum output power: 22 dBm
  • Distance Measurement Range: 28 to 750 cm
  • Distance Resolution: 1 mm
  • Operating Temperature: -15~60°C
  • Waterproof Grade: IP67
  • 868/915 MHz LoRaWAN protocol
  • Up to 10 km communication distance (line of sight)
  • Uses STM32WL processor based on Semtech SX1262
