DB15HD Breakout Boards with Pluggable Terminals

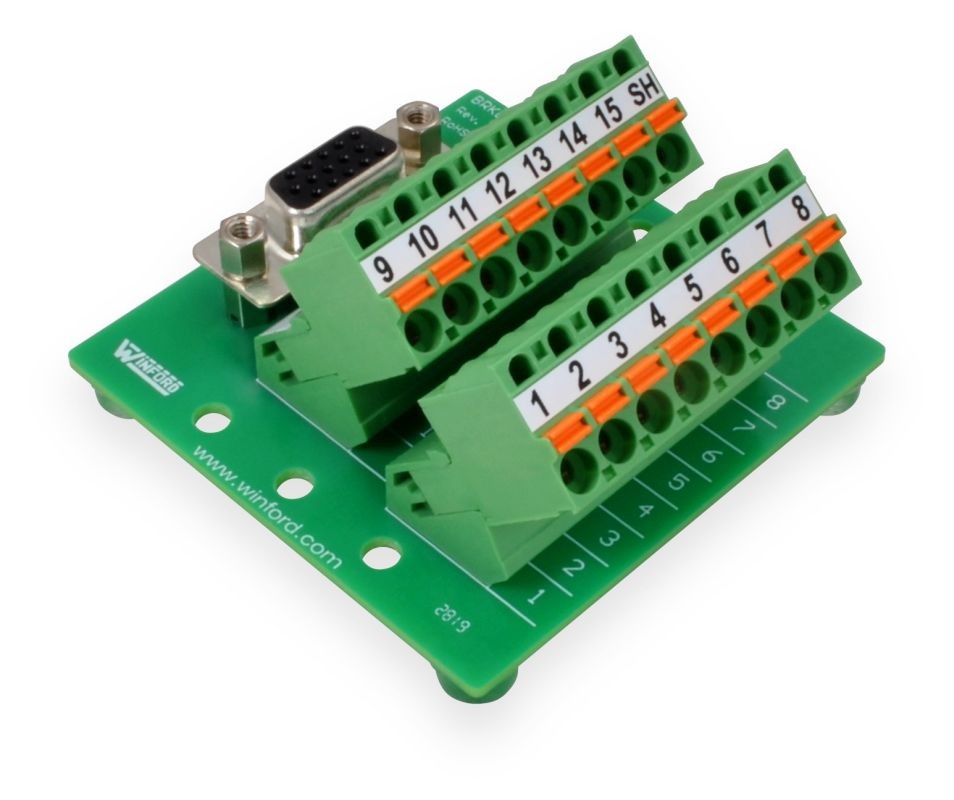

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15HD connector out to pluggable terminal blocks. This product is available with male or female connectors, and with screw terminals or spring terminals.

This board features removable terminal blocks which can be unplugged and removed from their bases.

DB15HD Breakout Boards with Pluggable Terminals - DB15HD Female Breakout Board, Straight Connector, 5mm Pluggable Spring Terminals, Feet
Part No. Description Price Stock
BRKLD15HDF-SG-DIN DB15HD Female Breakout Board, Straight Connector, 5mm Pluggable Spring Terminals, DIN Mount $26
BRKLD15HDF-SG-FT DB15HD Female Breakout Board, Straight Connector, 5mm Pluggable Spring Terminals, Feet $24
BRKLD15HDF-SW-DIN DB15HD Female Breakout Board, Straight Connector, 5mm Pluggable Screw Terminals, DIN Mount $26
BRKLD15HDF-SW-FT DB15HD Female Breakout Board, Straight Connector, 5mm Pluggable Screw Terminals, Feet $24
BRKLD15HDM-SG-DIN DB15HD Male Breakout Board, Straight Connector, 5mm Pluggable Spring Terminals, DIN Rail Mount $26
BRKLD15HDM-SG-FT DB15HD Male Breakout Board, Straight Connector, 5mm Pluggable Spring Terminals, Feet $24
BRKLD15HDM-SW-DIN DB15HD Male Breakout Board, Straight Connector, 5mm Pluggable Screw Terminals, DIN Rail Mount $26
BRKLD15HDM-SW-FT DB15HD Male Breakout Board, Straight Connector, 5mm Pluggable Screw Terminals, Feet $24
∗ Standard lead time is 1 week

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins.
Technically, the correct term for a DB15HD connector is DE15, but that term is not commonly used.

Terminal Options

This product is available with two different wire terminal options:

Spring Terminals Screw Terminals
Spring Terminals
(BRKLD15HDx-SG-x)
Screw Terminals
(BRKLD15HDx-SW-x)

Mounting Options

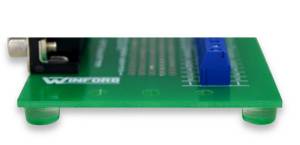

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount Rubber Feet
DIN Rail Mount (-DIN) Rubber Feet (-FT)

Features


  • Plug-in/detachable terminal blocks can be removed from their base
  • Terminals for each of the 15 lines, plus shield
  • Terminals accomodate wire sizes from 12AWG to 24AWG
  • Terminal pitch is 5mm -- very comfortable spacing
  • Available with spring or screw terminals
  • Available with DIN or feet mounting options
  • Approximate dimensions: 2.4" x 2.4"
