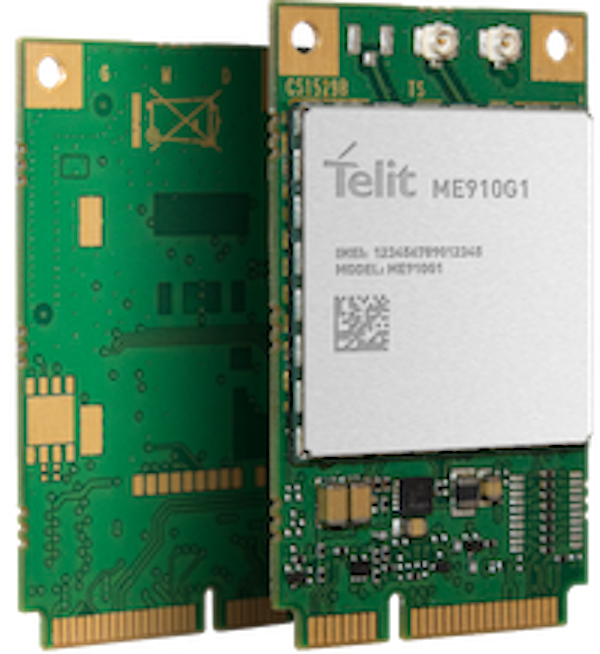

The ME910G1 series mini PCIe (mPCIe) modules are optimized for Rel 14 LTE-M and NB-IoT networks and available with 2G fallback options. The ME910G1 series modules are interchangeable with other modules in the xE910 mPCIe family.
The ME910G1 series modules are interchangeable with other modules in the xE910 mPCIe family. The ME910G1 series mini PCIe (mPCIe) modules are optimized for Release (Rel) 14 LTE-M and NB-IoT networks and are available with 2G fallback options.
Standard mini PCIe data card form factor
est-in-class 3GPP Rel 14 platform
Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
Battery-friendly 1.8 V GPIO
Internet friendly with integrated TCP/IP and UDP/IP stacks
Conforming to specifications from the Peripheral Component Interconnect Special Interest Group (PCI-SIG) electronics industry consortium, Telit mini PCIe are 52-pin, single-sided, full-size mini cards on a 50.95mm x 30 mm edge-connected board.
Features
LTE UE Cat M1/NB2
3GPP Rel 14 compliant
Half-duplex FDD
Single Rx, single antenna
3GPP Rel 12 PSM
3GPP Rel 13 eDRX
3GPP Rel 13 extended coverage
Control via AT commands according to 3GPP TS 27.005, 27.007 and customized AT commands
