WE310F5

The WE310F5 is a fully integrated combination Wi-Fi and Bluetooth® Low Energy 5.0 module. It provides a low-cost and high-speed solution for IoT device manufacturers to add wireless connectivity to their applications.

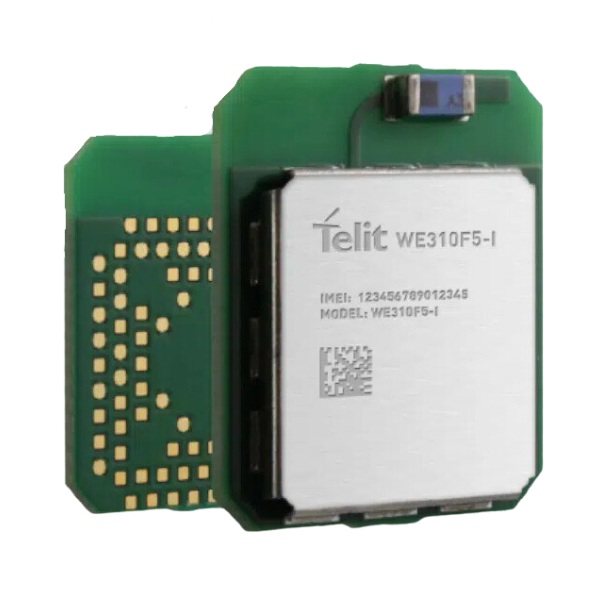

 WE310F5 - Telit WE310F5-I EVK Evaluation Kit Wi-Fi IoT - Built-in 2.4 GHz Antenna
Part No. Description Price Stock
WE310F5-I Telit WE310F5-I EVK Evaluation Kit Wi-Fi IoT - Built-in 2.4 GHz Antenna $9 ∗
WE310F5-P WE310F5-P (Wi-Fi b/g/n + BLE) 39.00.001 $8 ∗
∗ Standard lead time is 1 week

  • Serial-to-Wi-Fi hosted implementation
  • Telit IoT AppZone IDE for hostless customer application development
  • Ease of system integration, pin-to-pin compatible with WE310G4 (dual-band module alternative)
  • Wide range of peripherals (including UART, SPI, USB and SDIO)
  • Advanced security features (including WPA3) with integrated crypto hardware
  • Variants with (WE310F5-I) and without (WE310F5-P) antenna
  • Legacy support for AT commands from GainSpan module family
  • Certified module
  • Low power consumption
  • Based on Realtek Ameba System on Chip

Features

  • Wi-Fi 802.11 b/g/n 2.4GHz
  • Bluetooth® Low Energy 5.0
  • Wi-Fi AP/STA/Concurrent
  • Bluetooth® Low Energy Central/Peripheral/Concurrent
  • Built-in Wi-Fi/Bluetooth® coexistence
  • Host Interfaces: UART, SPI, SDIO, USB
  • FCC/IC/RED/RCM/JATE-JBL/TELEC-JRL/NCC/ANATEL/SRRC/WPC-ETA/KCC/UKCA
  • Wi-Fi Alliance
  • Bluetooth® SIG
  • LGA 94 pads
  • Length x Width x Height: 14.3 x 13.3 x 2.6 mm (Ext. Ant.)
  • Length x Width x Height: 18 x 15 x 2.6 mm (Int. Ant.)
  • Power supply: 3.3 V
  • Cloud agent: Amazon AWS IoT, Microsoft Azure
  • Security: SecureBoot, WPA3, TrustZone
  • Dimensions: 1.43cm × 1.33cm × 0.26cm (0.56in × 0.52in × 0.10in)
  • Operating Temperature: -40°C to 85°C
  • Warranty Period: 1 year
