MINI-MAX/WB-1

Discover the MINI-MAX/WB-1 from BiPOM Electronic, the motherboard for WillowBee industrial wireless module. With powerful capabilities and seamless integration, the MINI-MAX/WB-1 is the perfect choice for developers looking to create cutting-edge IoT applications. Explore now and take your project to the next level.

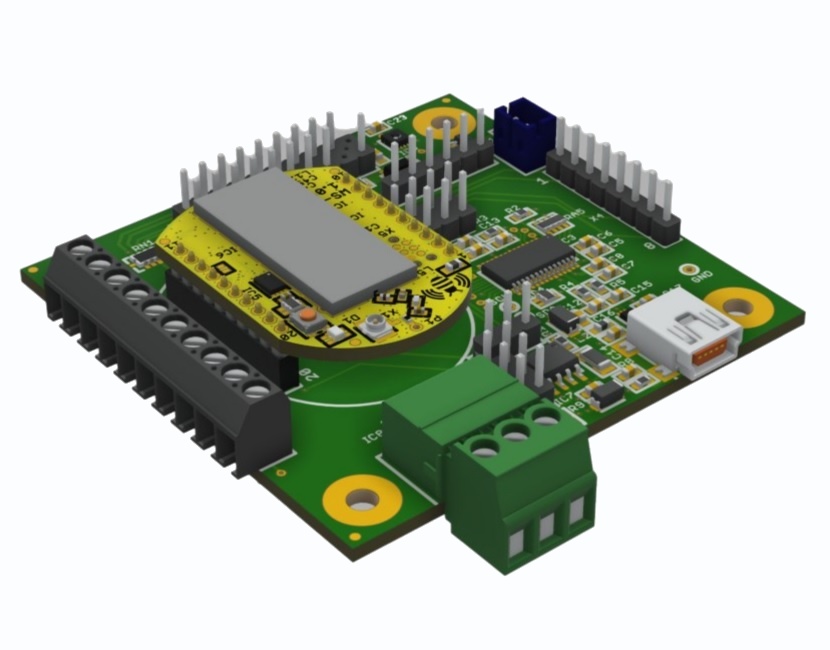

 MINI-MAX/WB-1 - WillowBee carrier board with MINI-MAX form factor
Part No. Description Price Stock
MINI-MAX/WB-1 WillowBee carrier board with MINI-MAX form factor $79 ∗
∗ Standard lead time is 1 week

MINI-MAX/WB-1 is fully backed by a 3-year warranty, technical support and application assistance from BiPOM Electronics, Inc.

Features

  • Compatible with both LoRaWAN and LTE-M1/NB-IoT WillowBee's
  • Expansion connector for easy access to WillowBee
  • Communication Method: USB and RS485
  • Type B Mini high-retention USB connector
  • USB approved for industrial environments
  • FTDI chip to convert USB to serial port
  • External power or 5 Volts on USB
  • 3.3V Regulator for WillowBee
  • Connector for optional 3.6V battery
  • 4x Analog inputs, 12-bit resolution, screw terminal
  • 1x Digital output, open drain
  • 1x Digital input, dry contact
  • Expansion bus interface to low-cost peripheral boards
  • 4 mounting holes
  • Temperature range: -40°C to +85°C
  • Dimensions: 2.35" (59.7mm) x 2.40" (61mm)
  • Supported by popular development packages
  • Micro-IDE integrates GCC Compiler and Downloader for WillowBee
  • Keil uVision and ST Micro Cube support
  • Command line downloader for any 3rd party development tool
  • Examples for all major build environments
  • Various LoRa sensor projects
  • Libraries and drivers for a variety of sensor components and IC’s.
  • Generic UART, I2C, SPI, 1-wire, analog and digital I/O drivers
  • Open source examples
  • Warranty Period: 1 year
