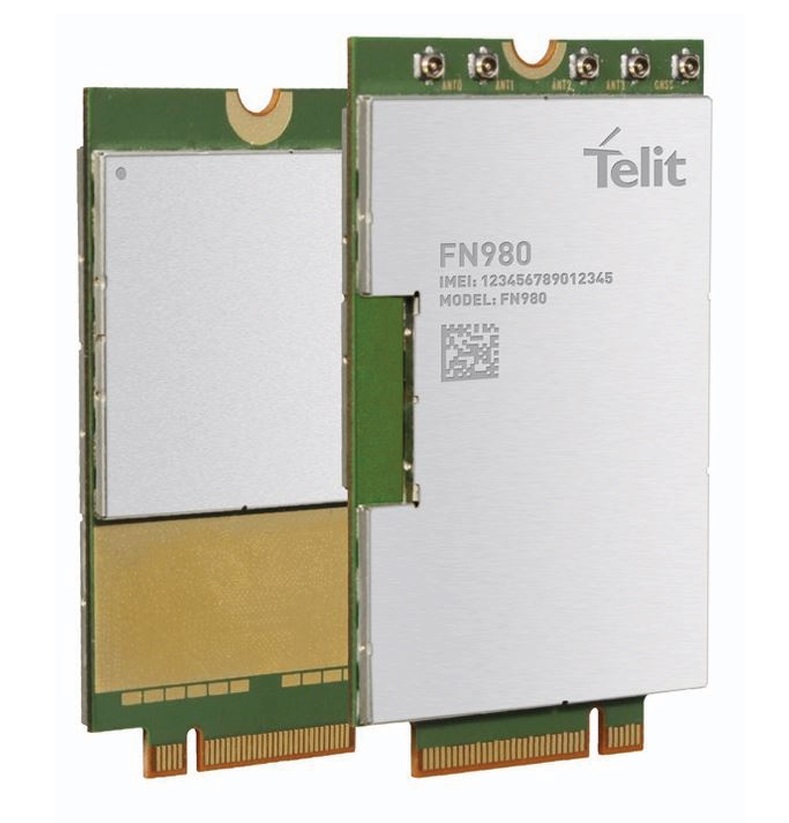

The FN980 series enables new 5G opportunities and markets for original equipment manufacturers (OEMs), system integrators and service providers working with industrial routers and gateways, fixed wireless access, professional mobile high-resolution video broadcasting equipment and beyond.
Support of 5G sub-6 FDD and TDD and mmWave (FN980m only) for global deployment
4G Cat 20, up to 7xCA, 256-QAM DL/UL, 2xCA UL
4 x 4 MIMO for 4G and 5G (sub-6 bands)
3G HSPA+ Rel 8 for fallback to legacy networks
Two-in-one mmWave antenna connectors (FN980m only) reduce the number of insertions required in production to a maximum of four
Support of SA and NSA operations, 5G core network Opt. 3a/3x and Opt. 2 for full network compatibility
Latest generation 4G/5G Rel 15
Intraband and interband UL CA supported on 4G networks for better throughput performance for uplink-centric applications, like surveillance cameras and 4K/8K video streaming
Support for both PCIe Gen 3 and USB 3.1 Gen 2 for maximum application design flexibility
