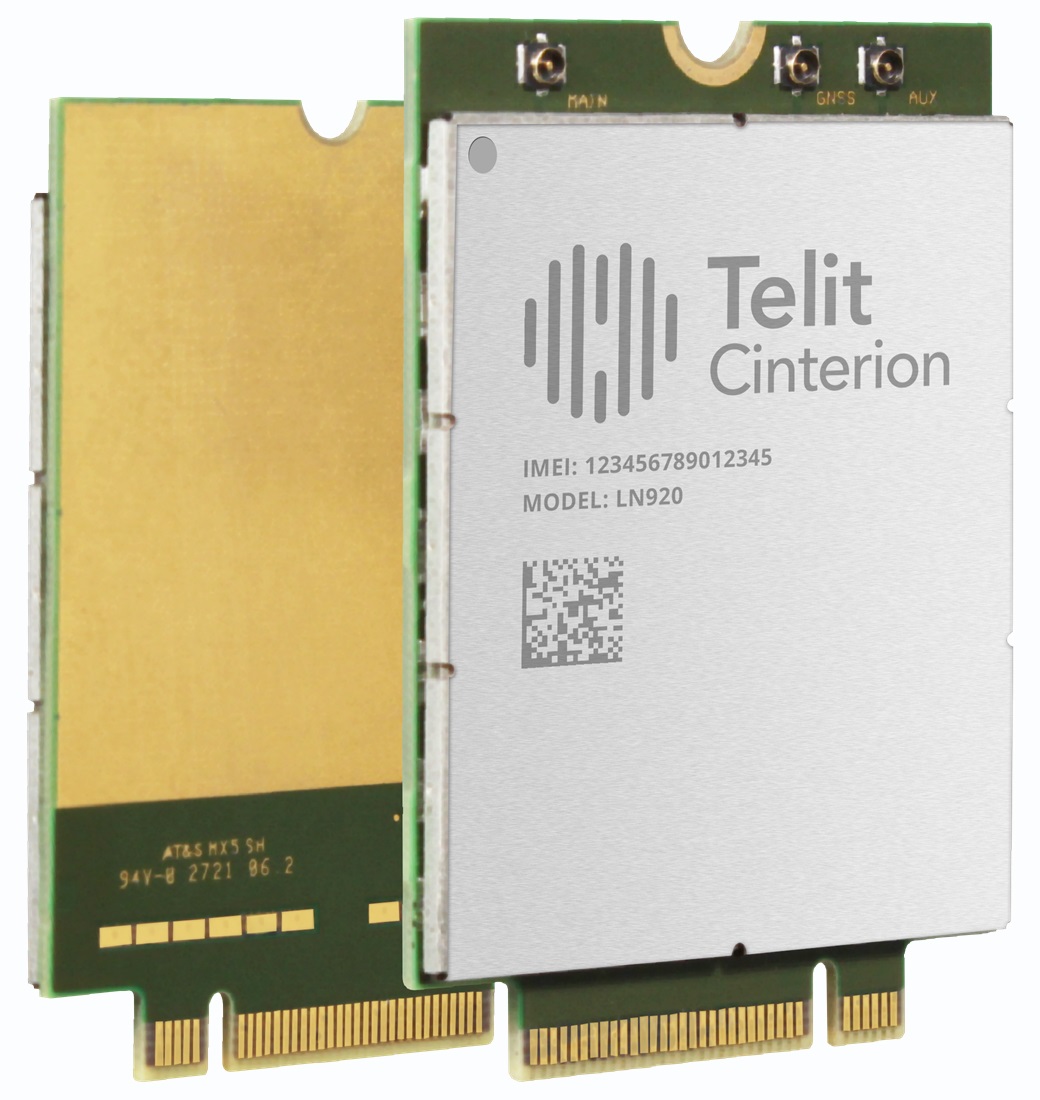

LN920Ax-WW

The LN920 is an M.2 (NGFF) compact data card with versions available in Category (Cat) 12 and 6 worldwide. They are pre-certified by Tier 1 operators and ideal for mobile computing and IIoT gateways and routers.

 LN920Ax-WW - LN920A12-WW M.2 ENGINEERING SAMPLE
Part No. Description Price Stock
LN920A12-WW LN920A12-WW M.2 ENGINEERING SAMPLE $136 ∗
LN920A6-WW LN920A6-WW M.2 ENGINEERING SAMPLE $115 ∗
∗ Standard lead time is 1 week

Features

  • Powered by the Qualcomm® Snapdragon® X12+ LTE modem
  • Supports LTE bands between 600 MHz and 3.7 GHz, including CBRS (Band 48) and FirstNet (Band 14)
  • LTE Cat 12 (3xCA and 600 Mbps DL/150 Mbps UL) and Cat 6 (2xCA and 300 Mbps DL/50 Mbps UL)
  • WCDMA fallback technology
  • Embedded GNSS positioning and navigation
  • Dimensions: 3.00cm × 4.20cm × 0.24cm (1.18in × 1.65in × 0.09in)
  • Operating Temperature: -40°C to 85°C
