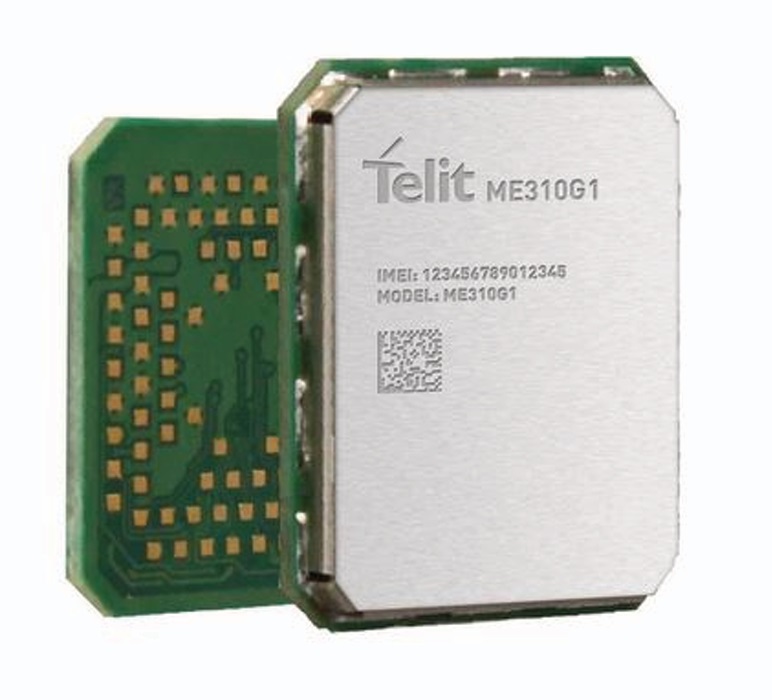

ME310G1 Series

The ME310G1 creates new IoT-enabled business models by addressing connectivity and battery life concerns for original equipment manufacturers (OEMs), integrators and device designers looking to increase data points they can collect from their operation and customers via IoT devices.

 ME310G1 Series - ME310G1-W1 MODULE AT&T/VzW 37.00.114
Part No. Description Price Stock
ME310G1-W1 ME310G1-W1 MODULE AT&T/VzW 37.00.114 $18 ∗
ME310G1-W3 ME310G1-W3 MODULE MARKETING SAMPLE $20 ∗
ME310G1-WW ME310G1-WW AT&T/VzW 37.00.214 HW1.0 $21 ∗
∗ Standard lead time is 1 week

Features

  • Optimized for ease-of-design, high yield and low-cost manufacturing
  • Compliant to 3GPP Rel. 14 Cat M1/NB2, tailored for IoT devices
  • An ideal solution for medical devices, fitness trackers, industrial sensors, smart meters and other mass-production, mass-deployment applications.
  • Global SKU with optional 2G fallback and future support for non-terrestrial networks (NTN)
  • Module sizes ranging from 300 mm2 to below 200 mm2 on a fixed 94-pad LGA footprint enable a "design once, use anywhere" IoT device
  • Dimensions: 13.1 x 14.3 x 2.6 mm (ME310G1-W1); 15 x 18 x 2.6 mm (ME310G1-WW/WWV/W3)
  • Operating Temperature: -40°C to 85°C
