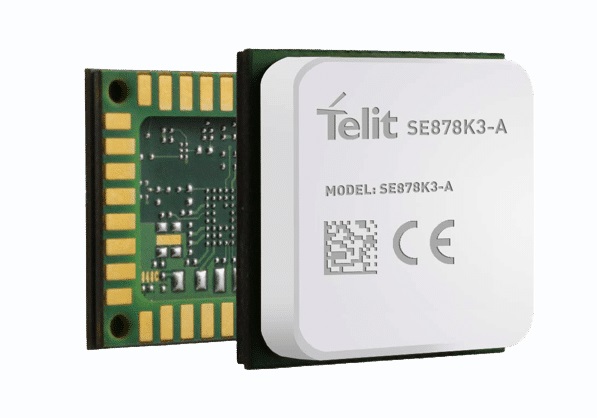

SE878K3-A

The SE878K3-A is a plug-and-play multi-constellation receiver with integrated high-sensitivity 17 x 17 mm patch antenna, SAW filter, additional LNA, flash memory, GNSS core, RTC and TCXO.

 SE878K3-A - SE878K3-A MODULE V13-2.3.2-N96
Part No. Description Price Stock
SE878K3-A SE878K3-A MODULE V13-2.3.2-N96 $12 ∗
∗ Standard lead time is 1 week

Features

  • Standard variant with integrated 17 x 17 x 4 mm SMT antenna
  • Additional LNA and SAW filter
  • SMT mounting not requiring holes on host PCB
  • Supports ephemeris file injection (A-GPS)
  • Satellite Based Augmentation System (SBAS) compliant
  • Embedded RF switch to support external antennas as well
  • Dimensions: 1.80cm × 1.80cm × 0.61cm (0.71in × 0.71in × 0.24in)
  • Operating Temperature: -40°C to 85°C
