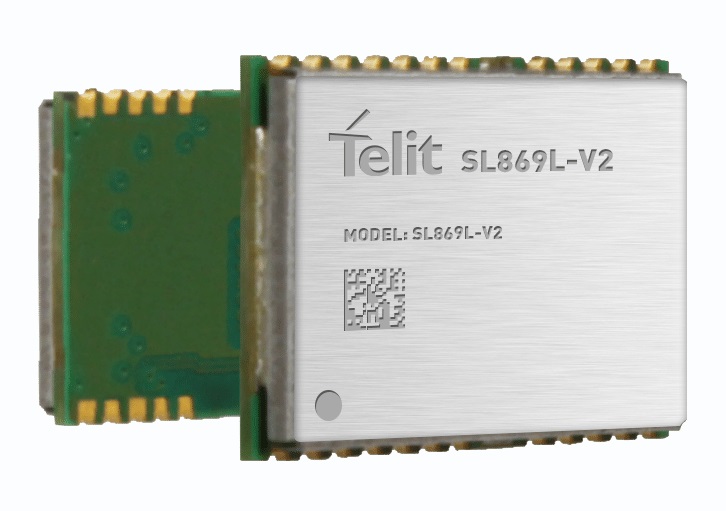

SL869L-V2

The SL869L-V2 is the evolved variant of the SL869-V2 family of modules based on the low-power Mediatek MT3333. The SL869L-V2 shares the same pinout and command interface of the standard SL869-V2 but it features an additional LNA, a DC block in the RF front end, and a second communication port selectable between I2C and UART.

 SL869L-V2 - SL869L-V2 MODULE FW 2.3.2-N96
Part No. Description Price Stock
SL869L-V2 SL869L-V2 MODULE FW 2.3.2-N96 $10 ∗
∗ Standard lead time is 1 week

Features

  • Based on the Mediatek MT3333 core
  • 16 x 12.2 x 2.4 mm LLC package
  • GPS L1, GLONASS L1, Galileo E1, BeiDou B1, QZSS, SBAS
  • Assisted GPS (both autonomous and server-based)
  • Default 1 Hz up to 10 Hz Navigation
  • Additional LNA and DC-Block
  • Dimensions: 1.60cm × 1.22cm × 0.24cm (0.63in × 0.48in × 0.09in)
  • Operating Temperature: -40°C to 85°C
