WE866C6-P

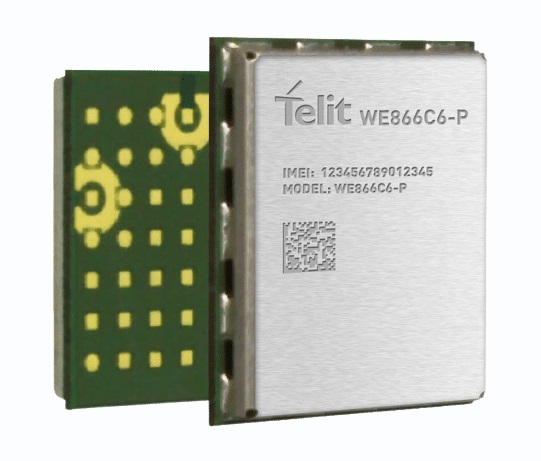

The WE866C6-P is a dual-band (2.4 and 5 GHz), one-stream (1 x 1) 802.11 ac Wi-Fi and Bluetooth® (Bluetooth®/Bluetooth® Low Energy 5.0) module with an extremely small footprint that provides an easy and cost-effective way for manufacturers to add short-range, wireless connectivity to their products.

 WE866C6-P - WE866C6-P Wi-Fi 11ac + BT/BLE-5 MODULE
Part No. Description Price Stock
WE866C6-P WE866C6-P Wi-Fi 11ac + BT/BLE-5 MODULE $10 ∗
∗ Standard lead time is 1 week

Features

  • Fully integrated, dual-band Wi-Fi Bluetooth® Low Energy 5.0 combination IoT module
  • Companion module for LTE cellular modules
  • High-bandwidth Wi-Fi/Bluetooth® Low Energy transceiver for Linux-based system
  • Advanced security features (including WPA3) with integrated crypto hardware
  • xE866 Telit form factor: Design once and deploy globally
  • Certified module
  • Low power consumption
  • Dimensions: 1.50cm × 1.30cm × 0.22cm (0.59in × 0.51in × 0.09in)
  • Operating Temperature: -40°C to 85°C
  • Warranty Period: 3 years
