WillowBee Sequans for LTE-M1/NB-IoT

WB-NS-1 is an industrial LTE CAT M1/NB2 module for IoT applications and has optimized power consumption with enhanced quality of coverage.
WB-NS-1 uses the advanced Monarch2 GM02SP IoT module from Sequans®. This module combines a 32-bit CPU core with an LTE radio in one package.

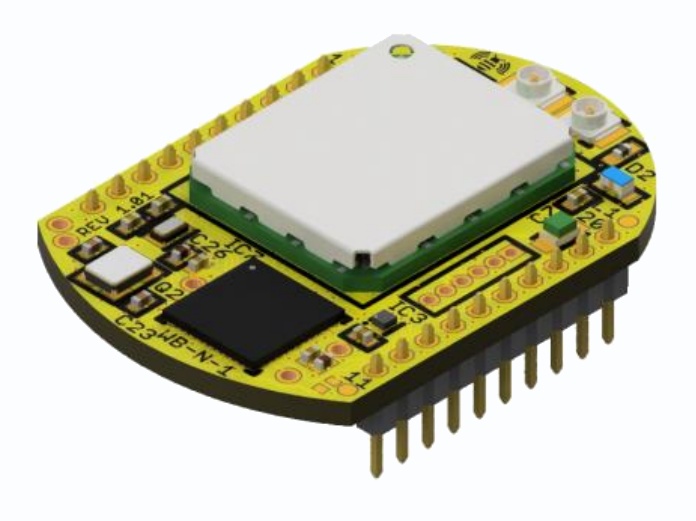

 WillowBee Sequans for LTE-M1/NB-IoT - WillowBee Sequans Monarch CAT-M1/NB-IoT module with uFL antenna connector
Part No. Description Price Stock
WB-NS-1 WillowBee Sequans Monarch CAT-M1/NB-IoT module with uFL antenna connector $49 ∗
∗ Standard lead time is 1 week

WB-NS-1 is pin compatible with other popular wireless devices and has fully backed by a 3-year warranty, technical support and application assistance from BiPOM Electronics, Inc.

Features

  • Sequans Monarch GM02SP worldwide module
  • Both LTE-M1 and NB-IoT (NB1, NB2) support
  • Low Power for battery operation
  • Configurable power output
  • Compliant with 3GPP Release 14 upgradeable to 17
  • Maximum output power: 23 dBm
  • 4G Bands: B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B66, B70, B71, B85. All major worldwide carriers.
  • CAT M1: up to 590 kbps DL and 1.1 Mbps UL
  • CAT NB1/NB2: up to 120.7 kbps DL and 160 kbps UL
  • Integrated SIM/eSIM
  • GNSS (GPS, GLONASS, Beidou, Galileo), L1 Band
  • Very low-power consumption per GNSS fix (with configurable performance vs. power levels)
  • Pin compatible with popular modules
  • u.FL Connectors for cellular and GNSS
  • RF Shield
  • Dual Power option: Battery or DC Power
  • 2.2V to 5.5V supply voltage range
  • Temperature Range: -40°C to +85°C
  • Dimensions 1.36" x 0.96" x 0.36" (34.54 mm x 24.38 mm x 9.14 mm)
  • 2-MB Serial Flash
  • Configurable 15 I/O Pins
  • ADC, SPI, UART, I2C interface
  • Warranty Period: 1 year
